Transceivers Installed in the Wrong Unit

Transceivers Installed in the Wrong Unit

Transceivers Installed in the Wrong Unit

It is critical that Transceivers are installed in the units that they are labeled with. If they are not, they will be incorrectly reporting for the wrong units.

If you need to move Transceivers to the correct units, you do not need to uninstall and reinstall the meters. You simply need to remove the Transceiver from the meter and reinstall it on the meter in the correct unit.
​
If moving Transceivers is not feasible, you may alternatively provide us with a list of unit labels as noted in this article (link).

Removing and Reinstalling Next Century Transceivers

  1. Remove the Transceiver from the Meter by sliding up.
  2. Open the Transceiver by pressing on the tab on the left side, next to the wire.
  3. Remove the Blue Block from the transmitter by sliding it up.
  4. Move Transceiver to the unit matching it's label.
  5. Place the Blue Block on the two prongs in the Transceiver labeled pulse. It is critical that these are placed on the correct two prongs!
  6. Close the Transceiver.
  7. Reinstall the Transceiver it on the Meter by sliding down on the clip.

Step by Step with Pictures

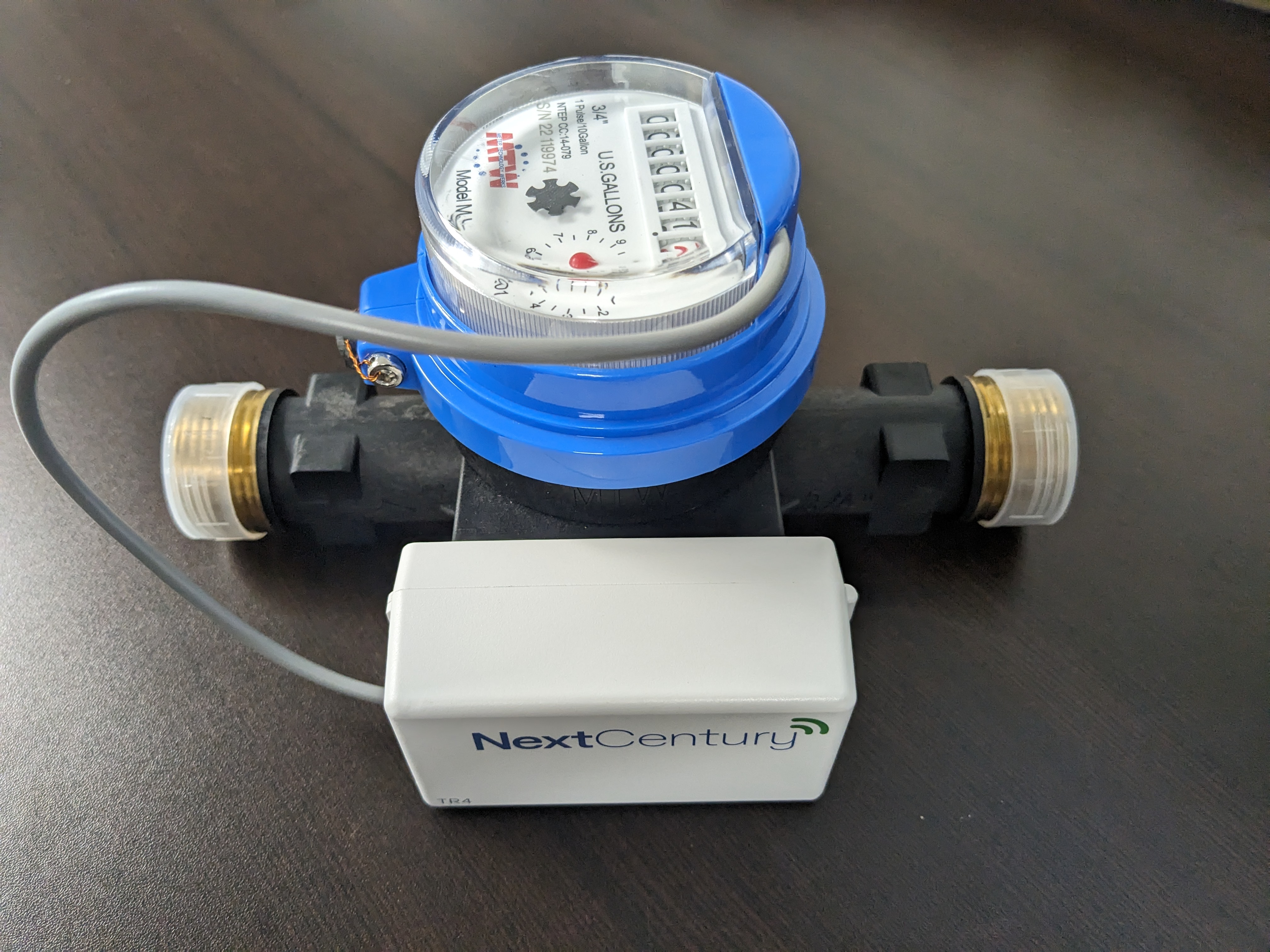

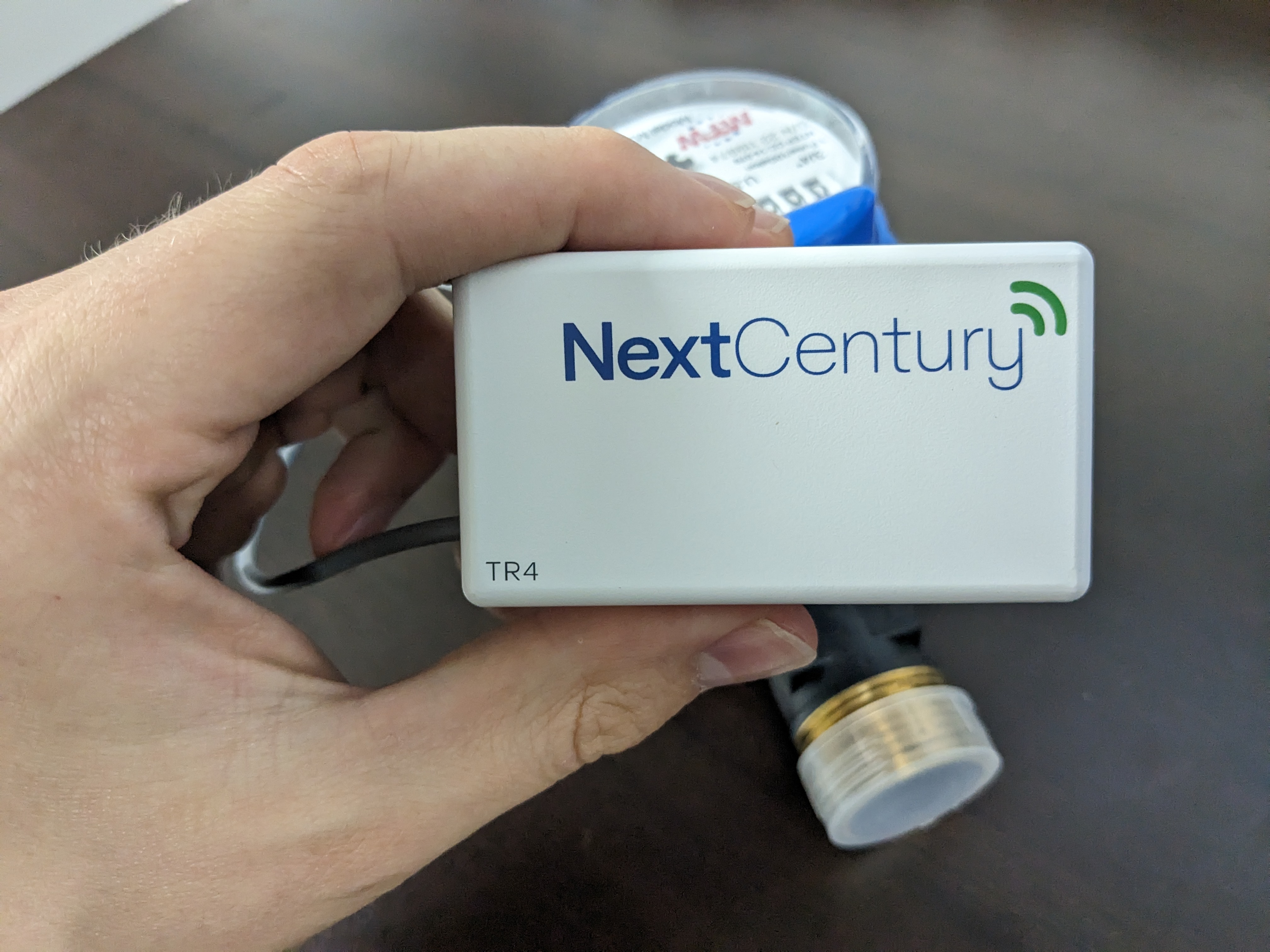

Remove the Transceiver from the Meter by sliding up.

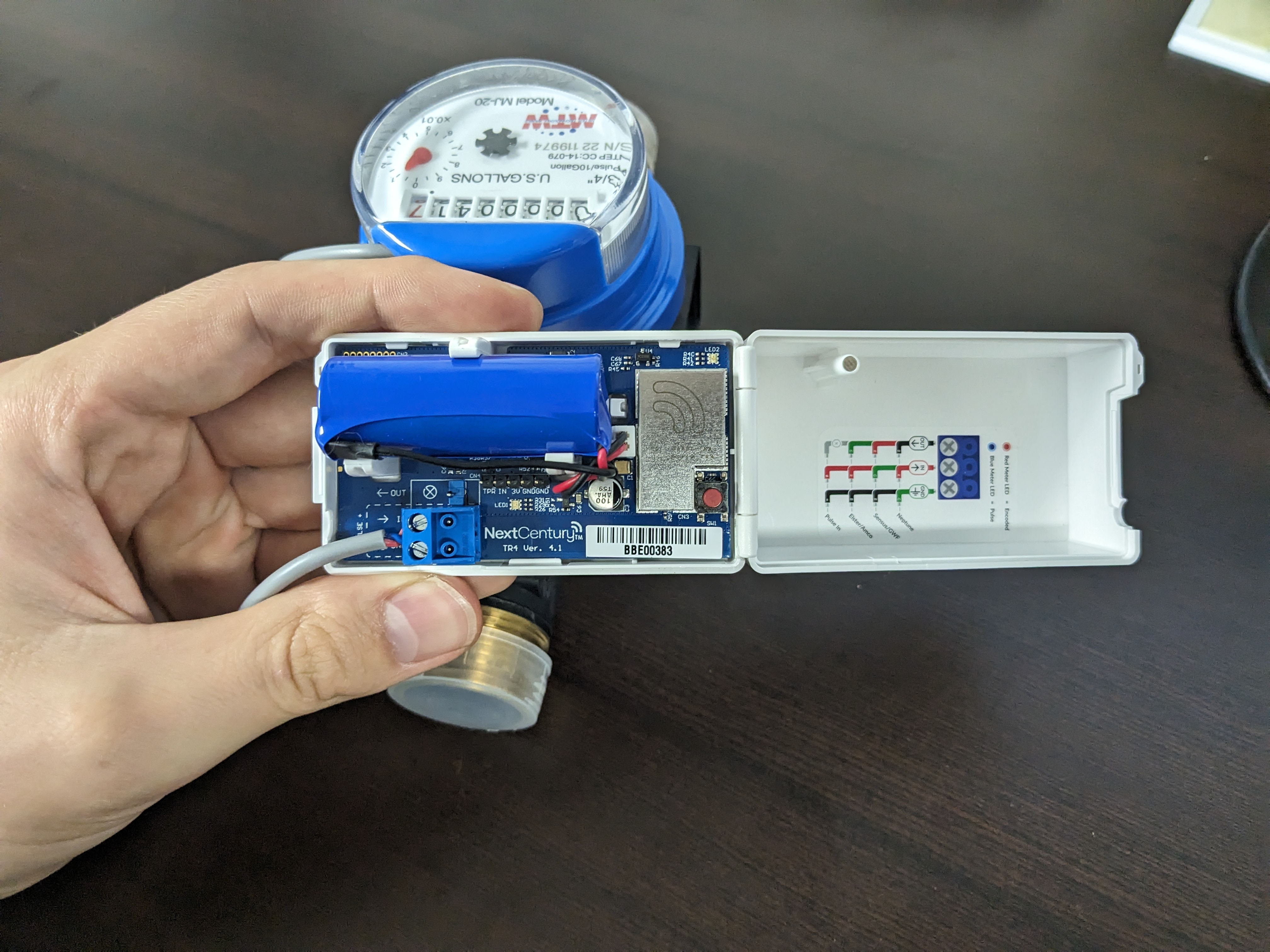

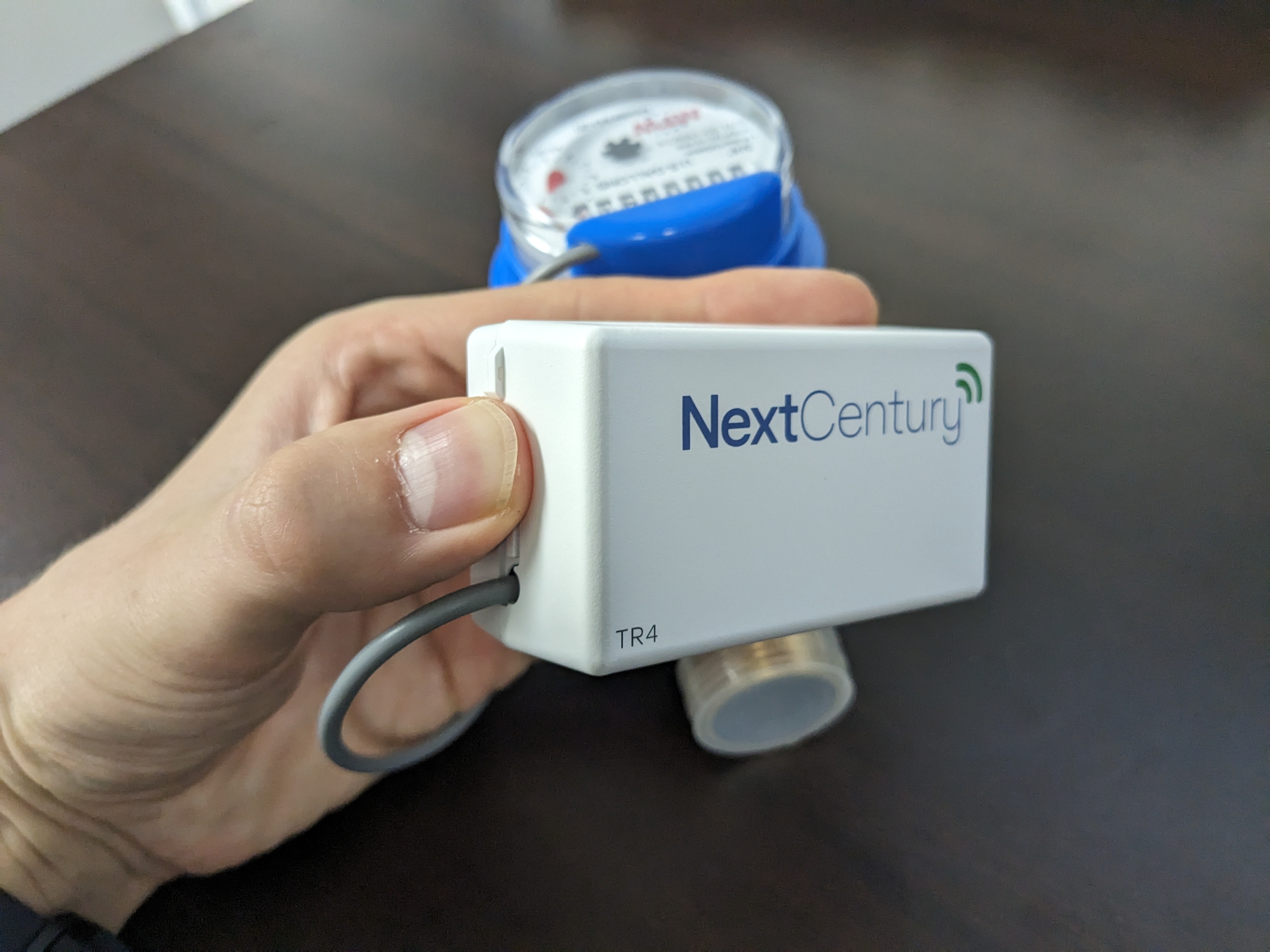

Open the Transceiver by pressing on the tab on the left side, next to the wire.

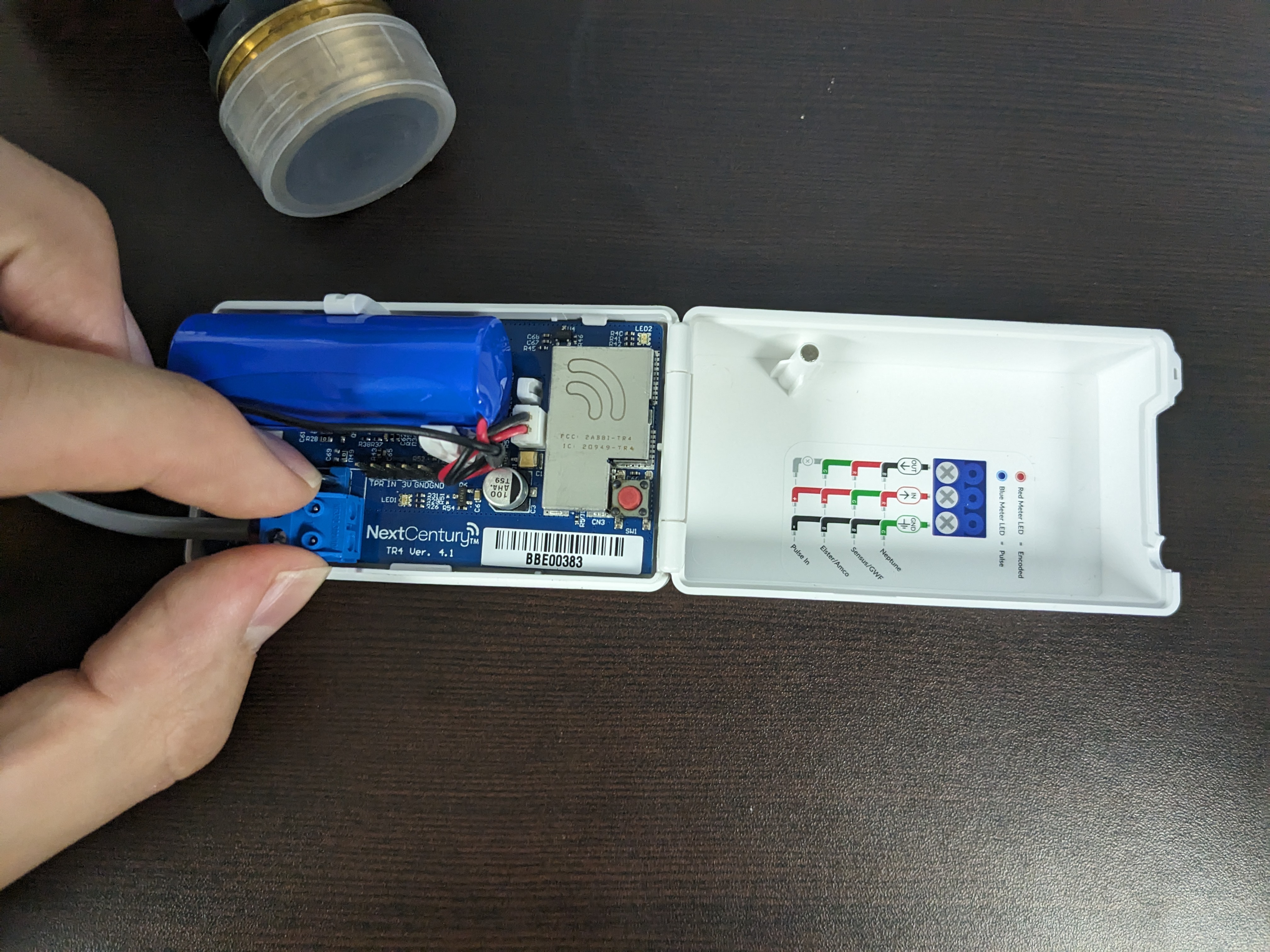

Remove the Blue Block from the transmitter by sliding it up.



Move Transceiver to the unit matching it's label.

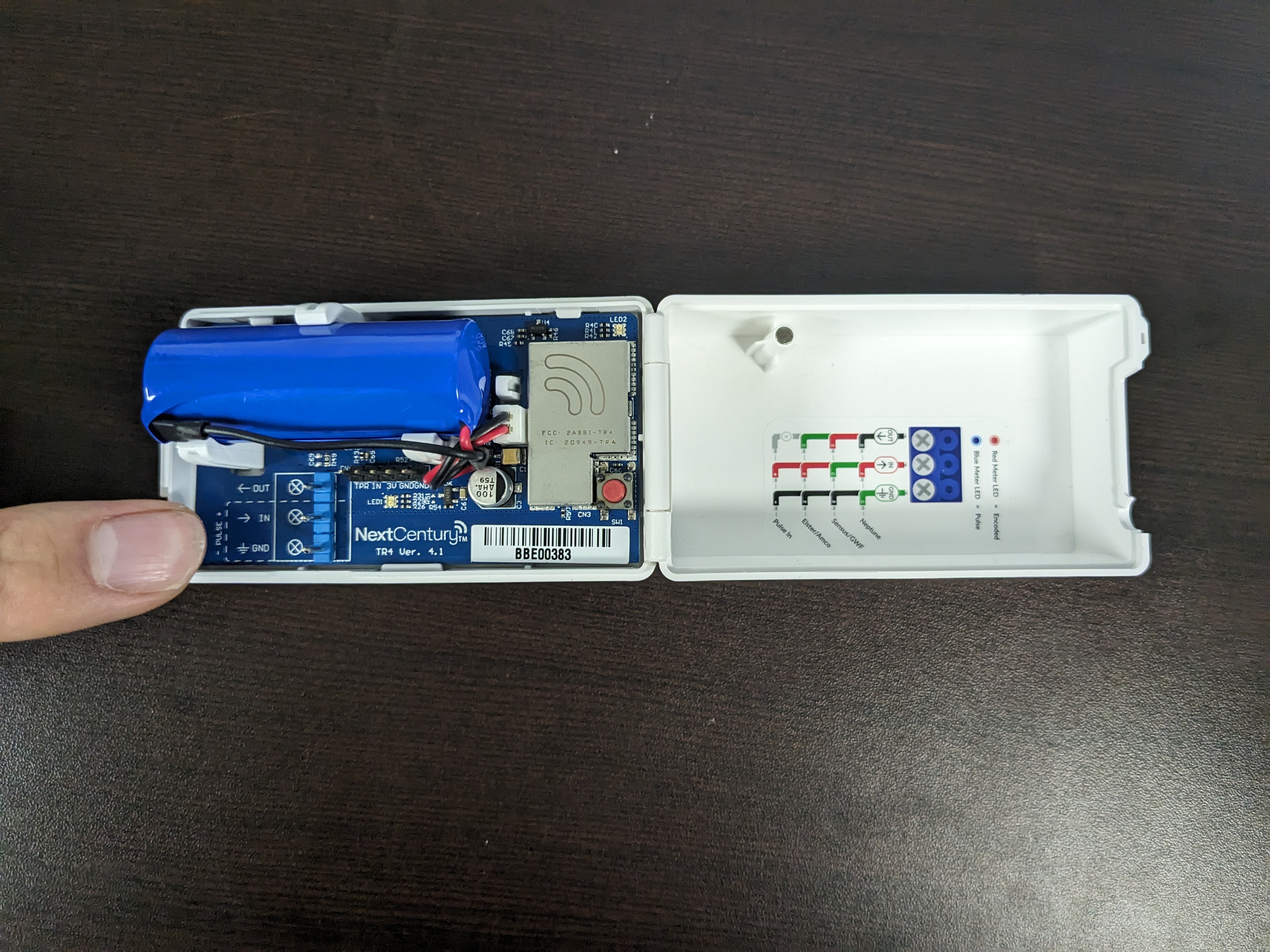

Place the Blue Block on the two prongs in the Transceiver labeled pulse. It is critical that these are placed on the correct two prongs!


Close the Transceiver.



Reinstall the Transceiver it on the Meter by sliding down on the clip.
