Troubleshooting No Consumption

OVERVIEW:

For non-advancing meters, the first step would be to do a bucket test. This will test the meter itself for accuracy as well as the pulse output capabilities: Before getting started, verify the status of the transmitter itself, specifically the wiring between the 2 devices. Make sure there is no damage to the wire and that connection to the transmitter hasn’t been interrupted.

For Bucket Test:

**See meter inaccuracy > Bucket Test (Pulse Ring)*

If the bucket test passes and the meter is producing a pulse, the issue could be the transmitter itself. If this is the suspected cause, you will want to check the transmitter for pulses.

• To do this you will need to disconnect the blue/green block in the transmitter itself to expose the pins.

• Using something conductive like a paperclip, short out all the pins by bridging them using the conductive material. This will cause a false pulse.

• Reset the transmitter connection to the Inovonics gateway by pressing the reset button (blue button).

• Verify if Transmitter recorded a pulse on the Inovonics tapwatch.com website.

• For access **See Account creation > Inovonics**

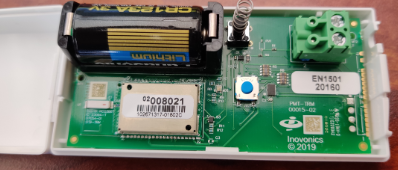

Fig. A: EN1501 Transmitter - Circuit board view

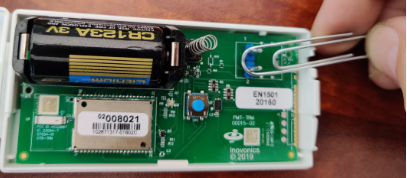

Fig. B: EN1501 Transmitter - Using paperclip on pulse pins

If this test is performed and the transmitter still doesn’t produce a pulse, the transmitter will need to be replaced.
