Checking the Pulse Rate on RR4's and RR4-TR's

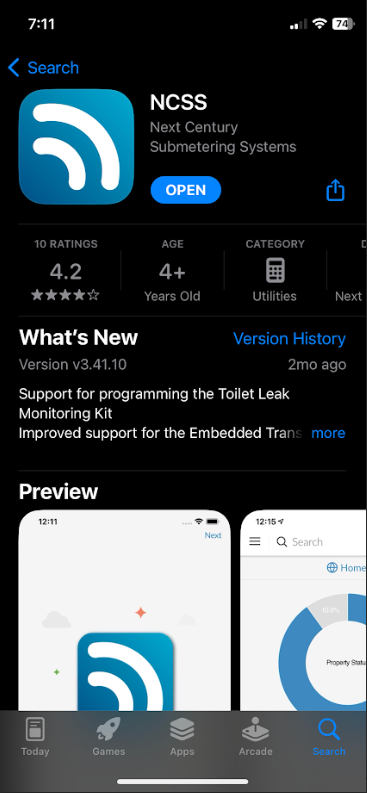

1.) First you will need to download the Next Century app called NCSS in the app store. Here's what the page looks like:

NCSS in the iPhone app store.

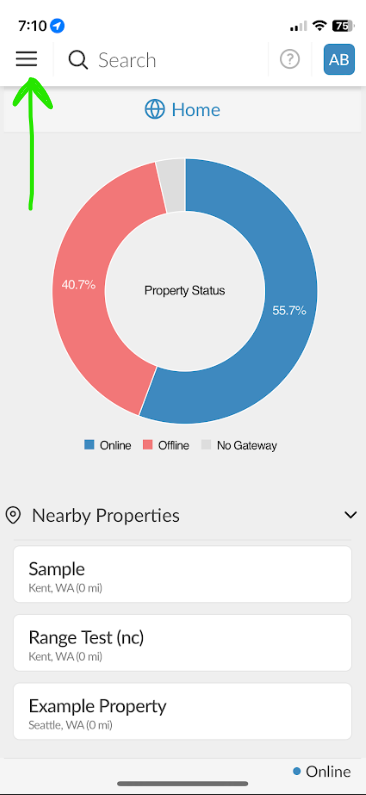

2.) From there, create an account or log in. You'll be taken to the below page. Tap on the three lines in the top left corner.

A drawn-in green arrow points to the three lines you'll need to tap.

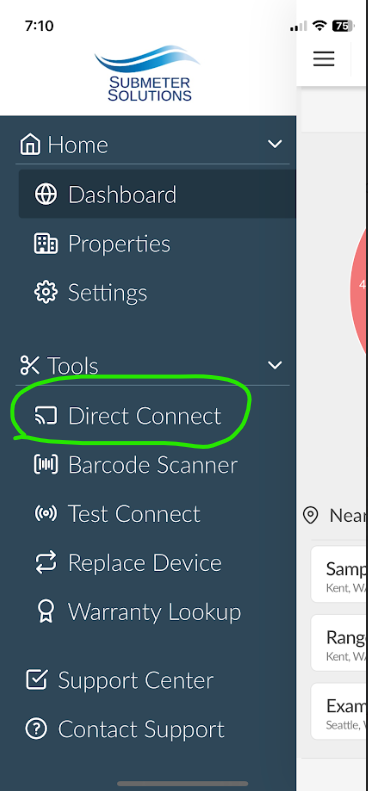

3.) Make sure your Bluetooth is on and you are next to the Remote Reader. Then, tap "Direct Connect".

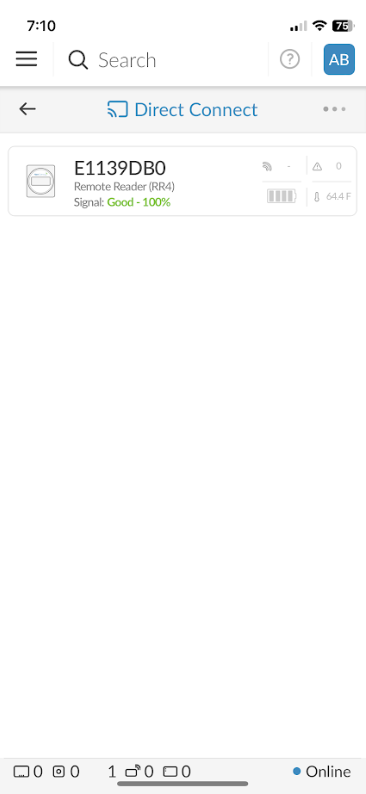

4.) If your Bluetooth is on and you're next to the Remote Reader, you will see the Remote Reader pop up on this screen. Tap on the box.

5.) That will take you to the below page. When you're there, scroll down until you see "Meter 1".

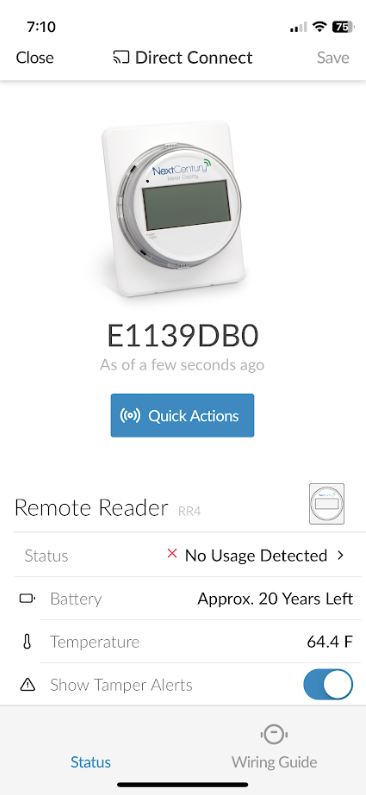

The initial page it takes you to. Scroll down from here.

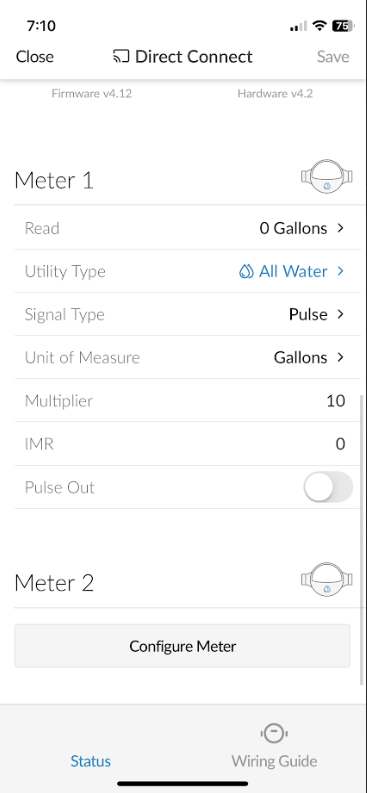

This is where you want to be, under "Meter 1".

6.) We're focusing on the "Multiplier". If it says "10", your reader is programmed to a pulse rate of 1 pulse for every 10 gallons. You want to make sure the pulse rate matches what it says on the meter face. If you're not sure what your meter's pulse rate is, take a clear picture of the face of your meter and send it to support@submetersolutions.com. We'll help you figure it out!
